Fadal CNC Machine Proximity Switches

Machine and Control	Spindle Orient	ATC Turret	ATCHome	ATC Extend	DATC24 Count	DATC24 Stopping	DATC24 Arm at Spindle	DATC24 Arm at Home	DATC24 Bucket Up/Down
CNC88, 32MP	ELE-2500	ELE-2064	ELE-1202	ELE-1202	ELE-1185	ELE-1185	ELE-1185	ELE-1185	ELE-1186
Siemens	ELE-2500	ELE-2500	ELE-1202	ELE-1202	ELE-1185	ELE-1185	ELE-1185	ELE-1185	ELE-1186
Fanuc 18iMB5	ELE-3100	ELE-3100	ELE-1202	ELE-1202	ELE-1185	ELE-1185	ELE-1185	ELE-1185	ELE-1186
Fanuc 18iMB	ELE-3100	ELE-3100	ELE-1202	ELE-1202	ELE-1185	ELE-1185	ELE-1185	ELE-1185	ELE-1186
Fanuc 0i	ELE-3100	ELE-3100	ELE-1202	ELE-1202	ELE-1185	ELE-1185	ELE-1185	ELE-1185	ELE-1186
Infimatic NC200	ELE-2500	ELE-2500	ELE-1202	ELE-1202	ELE-1185	ELE-1185	ELE-1185	ELE-1185	ELE-1186

Machine and Control	LowRange Idler	HighRange Idler	Drawbar Cylinder	DATC32 Count	DATC32 Stopping	DATC32 Arm at Spindle	DATC32 Arm at Home	DATC32 Bucket Up/Down	Servo Turret Count
CNC88, 32MP	ELE-2500	ELE-1202	ELE-1202	ELE-1185	ELE-1185	ELE-1185	ELE-1185	ELE-1186	ELE-2500
Siemens	ELE-2500	ELE-1202	ELE-1202	ELE-1185	ELE-1185	ELE-1185	ELE-1185	ELE-1186
Fanuc 18iMB5	ELE-3100	ELE-1202	ELE-1202	ELE-1185	ELE-1185	ELE-1185	ELE-1185	ELE-1186
Fanuc 18iMB	ELE-3100	ELE-1202	ELE-1202
Fanuc 0i	ELE-3100	ELE-1202	ELE-1202
Infimatic NC200	ELE-2500	ELE-1202	ELE-1202

Part Number	Description
ELE-0385	SWITCH ROLLER PROXIMITY ATC
ELE-0386	SWITCH ROLLER PRO X 9 FT PLC
ELE-1185	SENSOR;12MM DATC 24/32/62 CAMS/TURRET/INDEX0
ELE-1186	SWITCH;REED DATC AIR CYLINDER UP/DOWN
ELE-1202	ELE-1202 SWITCH;REED 2WIRE TUBULAR
ELE-2500	SWITCH,HALL 5-24V 1M W/TERMS;NOT FOR FANUC
ELE-2374	SENSOR,8MM;DATC20 [FITS 3 CAMS]
ELE-3100	SWITCH;HALL EFFCT SWITCH W/SNUBBER;18 IN

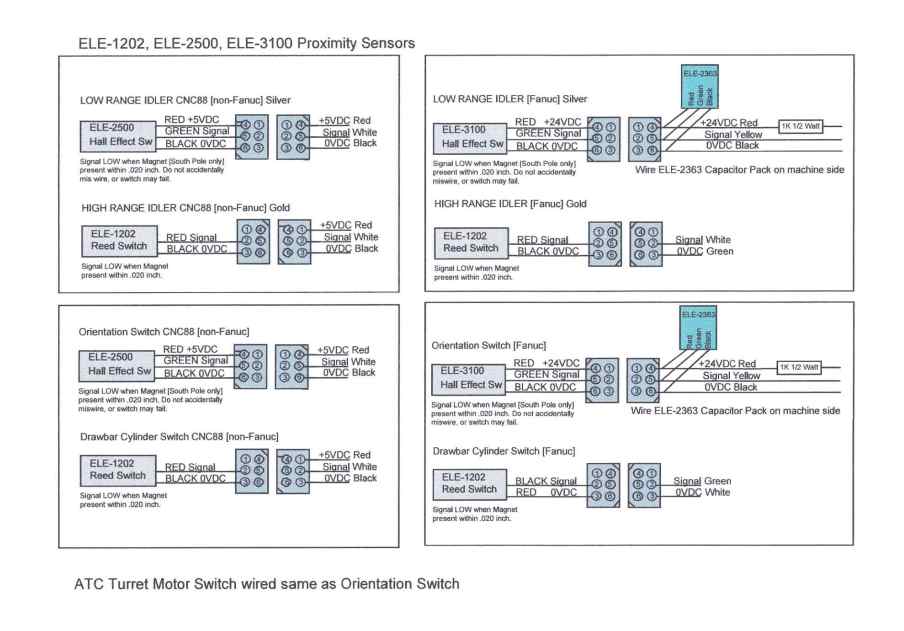

PROXIMITY SWITCHES
